Fujifilm X-S20 Review | Photography Blog


Introduction

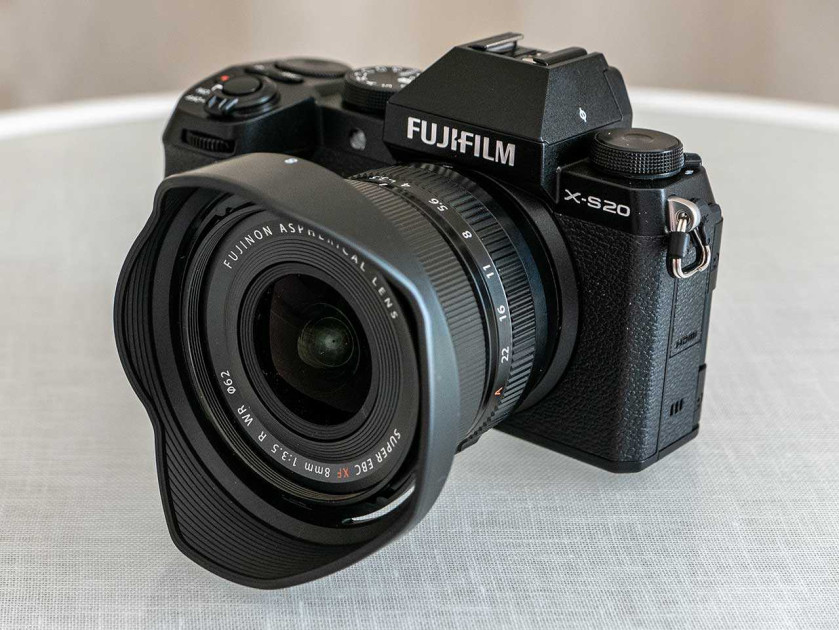

The X-S20 is a mid-range mirrorless camera with an APS-C sensor which replaces the previous X-S10 model in the Fujifilm range.

It retains the smaller body and simpler user interface of original, again marking quite a departure from the usual Fujifilm blueprint for enthusiast cameras which typically have lots of external controls.

If you have ever been put off by the more complex design and larger size of models like the X-T5 and X-Pro3 and prefer a more DSLR-design, the X-S20 will be a better fit.

Although they look almost identical side-by-side, there are quite a lot of differences between the new XS20 and the previous XS10 model from 2020 when it comes to their core specifications and features.

These include the latest X-Processor 5 processor, more sophisticated auto-focusing, additional 6K video codecs, a brand new dedicated VLOG shooting mode for vlogging, significantly longer battery life, 7 stops of IBIS, a higher-resolution LCD screen, a dedicated headphone jack and seamless webcam connectivity.

In terms of its marketing position, the X-S20 sits above the X-T30 II and below the X-T5 in the current Fujifilm X-series range.

The Fujifilm X-S20 is priced at £1,249 / $1,299 body only, £1,399 / $1,399 with the XC 15-45mm lens, or £1,599 / $1,699 with the XF 18-55mm lens. It is made in Indonesia.

Ease of Use




Fujifilm X-S10

The image sensor used in the new X-S20 and the previous X-S10 is exactly the same – a 26 megapixel, APS-C sized, X-Trans 4 BSI CMOS sensor – which is also used by the X-Pro3 and X-T4 cameras.

So you will get exactly the same still and video image quality from either X-S series model.

The pricier X-T5 ups the ante considerably to a 40.2 megapixel sensor, offering much greater resolution.

It actually uses exactly the same X-Trans CMOS 5 HR sensor as the flagship X-H2 camera, with HR standing for High Resolution.

This is a BSI (back-side illuminated) sensor design that has much more of a focus on detail and resolution than out-and-out speed.

The native sensitivity range of the X-S20 is ISO 160 to ISO 12,800, which can be expanded to ISO 80 to ISO 51,200.




Fujifilm X-S10

What differs between them is the processor, with the XS20 using the latest X-Processor 5 processor, as also featured in the X-T5, X-H2 and X-H2S, whereas the older XS10 has the previous generation X-Processor 4 processor.

This primarily means that the XS20 is able to offer more sophisticated auto-focusing and additional 6K video codecs which the XS10 doesn’t support.

Physically the X-S20 sits between the X-H and X-T series, looking like those two camera ranges have been merged together to create the more diminutive X-S series.

The design of the body and controls is by far the main difference between the XS20 and the more expensive XT5 step-up model which many buyers may also be considering.

The new X-S20 is much smaller and lighter than its big brother, and purposely has a much simpler interface in order to try and make it more appealing to less experienced users or those who prefer fewer controls.

If you’ve ever considered a Fujifilm camera but been put of by its plethora of manual controls – something that admittedly a lot of people love with a passion – then the new XS20 will certainly be more up your street.




Fujifilm X-S10

Instead of the ISO dial, Shutter Speed dial and Exposure Compensation dial found on top of the X-T5, there’s just a customisable Function dial on the left and shooting mode dial on the top-right of the XS20.

The rear of the X-S20 is slightly simpler too, with the X-T5’s D-pad completely disappearing in favour of a more touchscreen-heavy interface.

Weighing in at 491g including a battery and memory card and measuring 127.7mm x 85.1mm x 65.4mm, the X-S10 is 20% lighter and 10% smaller than the X-T5, which in turn is slightly lighter and smaller than the flagship X-H1 model.

It’s just 26g heavier than the original X-S10 despite using a larger battery that more than doubles the number of shots that you can take.

The Fuji X-S10 has an impressively large hand-grip for such a small camera, which is the direct result of the new, larger capacity battery being located in the grip to accommodate the IBIS unit.

It’s plenty big enough to wrap three fingers of your hand around, with your right forefinger operating the shutter button.




Fujifilm X-S10

The large grip helps to make the camera more stable when paired even with one of Fujifilm’s larger telephoto lenses.

Despite being so small and light, the X-S20 offers a very impressive level of build quality that’s on a par with more expensive models in the range.

An added bonus for some people is the inclusion of a built-in pop-up flash, something that the more pro-oriented XT5 doesn’t have.

The only main concession to the more aggressive price-point from a build quality point of view is the complete lack of any weather-sealing – if this is a must-have feature, then you’ll need to step-up to the X-T5.

Despite being so small and light, the new XS20 still manages to squeeze in a very good stabilisation system that’s been further improved since the X-S10 was released.

The X-S10 provided up to 6 shutter steps of compensation, whereas the new X-S20 improves on that by supporting up to a maximum of 7 stops, matching the more expensive X-T5.




Fujifilm X-S10

The XS20 has a simplified interface that has been designed to be less intimidating to new users who don’t already have a vested interest in the Fujifilm X-series system, or to those who don’t appreciate manual controls as much as a simpler, more streamlined control layout.

So the X-S20 has a much less complex top-plate compared to the usual array of manual controls that Fujifilm include on their higher-end cameras.

Instead of the ISO dial, Shutter Speed dial and Exposure Compensation dial which adorn the top of the X-T5, there’s a Function dial on the left of the X-S20 which by default changes the film simulation mode, and a traditional PASM dial on the right.

The X-S20 impressively offers no less than four Custom shooting modes on the PASM dial, and even better than that, you can choose to store AF/MF and shooting settings in each mode as well as the image quality setting.

This makes it very easy to setup different custom modes for different shooting scenarios/techniques. Note that this only works for stills, though, not movies.

Importantly the X-S20 still offers front and rear command dials, which along with the customisable Function button sake it easy to quickly change the shutter speed, aperture and exposure compensation, depending on which shooting mode you’re currently using.




Fujifilm X-S10

Fujifilm still believe that a built-in flash is an important feature on their lower-mid tier cameras, so the new X-S20 comes with a pop-up flash that’s activated by a switch on the left of the top-panel.

Also found on top of the camera are the ISO and Quick Menu buttons, along with a one-touch movie record button and the shutter release button, encircled by the On/Off power switch.

Turning to the rear of the XS20, once again the control layout is simpler when compared to the X-T5.

Despite the lack of traditional Fujifilm manual dials, the X-S20 still provides some controls for the enthusiast user, as well as a simpler interface for beginners.

The View Mode, AEL and AF ON buttons all double up as customisable Function buttons, while the 8-way AF joystick is a great inclusion on a mid-range camera.

The X-S20 offers 8fps continuous shooting when using the manual shutter, increasing to 20fps when switching to the electronic shutter without any crop, or 30fps with a 1.25x crop applied.




Fujifilm X-S10

The X-T5 supports a 15fps continuous shooting speed when using the mechanical shutter, beating the X-S20, but the latter outperforms the former when it comes to the electronic shutter.

If you switch to the electronic shutter, the XT5 can shoot at up to 20fps, with a 1.29x crop applied. The X-S20 can actually shoot at 30fps when using the electronic shutter, with a 1.25x crop applied.

Note that the 20fps and 10fps rates have no crop applied on the X-S20, so it actually outperforms the X-T5 in this regard.

The electronic viewfinder (EVF) is a 2.36M-dot unit with 0.62x magnification, 100fps refresh rate and a built-in eye sensor. It’s exactly the same as the one found in the X-S10.

In comparison, the X-T5 has a more detailed 3.68M-dot OLED electronic viewfinder with larger 0.80x magnification, 100fps refresh rate, and a built-in eye sensor. It’s easier to use for glasses wearers because of its larger size and built-in eye-cup, which the X-S20 lacks.

The X-S20 has a 3-inch vari-angle LCD screen that can be tilted out to the side and rotated forwards, and also folded against the back of the camera to help protect it when not in use.




Fujifilm X-S10

You can flip out the screen to the side, rotate it forwards for easier operation when pointing the camera at yourself, and fold it flat against the back of the camera to stop it from getting scratched.

This free-angle design proves to be very versatile screen for vlogging, movie shooting and photography in general.

What differs between the XS10 and XS20 is the resolution of the screen – 1.04M-dots versus 1.84M-dots respectively – which gives the X-S20 a noticeable edge.

The X-S20 has a good movie mode that more than holds its own against its main rivals and surpasses the capabilities of its predecessor.

The newer camera offers a highest quality rate of 6.2K/30P, plus DCI 4K/60P, 1080/60P, 1080/240P, recorded in 4:2:2 10-bit internally up to 360Mbps. The previous model offered a highest quality rate of DCI 4K/60p video recorded in 4:2:0 10-bit internally.

Compared to the X-T5, both of them also support up to DCI 4K/60p recording but the X-S20 does so with a 1.17x crop factor, whereas the X-T5 doesn’t apply any crop to its 4K/60p footage.




Fujifilm X-S10

The X-T5 features a digital zoom function that uses the camera’s 40.2MP sensor to deliver up to 2x of digital zoom with little to no loss in resolution, when recording video in 4K. The X-S20 does not support this function.

Combined with a compatible HDMI recording device from Atomos or Blackmagic Design, 12-bit RAW video output from the X-S20 can be recorded as Apple ProRes RAW or Blackmagic RAW.

There’s also the very latest F-Log2 profile which supports an expanded 14+ stops of dynamic range, and a welcome 3.5mm headphone jack has been added to the right-hand flank of the camera.

A new Vlog shooting mode has been introduced for Vlog production. Set the Shooting Mode dial on the top of the XS20 to “Vlog” to quickly change key camera settings with a touch of a button for video self-portraits. It also enables the equally new Product Priority auto-focus mode and Background Defocus option.

Product Priority is a special autofocus mode that alerts the camera to switch focus from a person’s face to an object that may be held up in front of the camera.

This is a popular YouTube technique for when wanting to show an item to the viewer, but on cameras with slower autofocus it can leave the focus fixed on the presenter’s face with the product out of focus, and vice versa. The Product Priority mode solves that issue, adding another plus point for vlogging with the X-S20.




Fujifilm X-S10

For vloggers, the aim of the new Background Defocus option is to quickly switch between having the background blurred or clear. In photographic terms it is switching the aperture between the largest available on the attached lens and a much smaller one. Note that it is only available for video and not also for stills.

Both models have the Long GOP and All Intra compression formats, F-Log profile, 1080p/240p 10x slow-motion mode, digital image stabiliser which works in conjunction with the in-camera and lens-based systems, IS Mode Boost, different Main menu and Quick menu systems for stills and video modes, and a 3.5mm MIC socket.

The new X-S20 has exactly the same hybrid autofocus system with phase detection and and contrast detections points as the X-S10, but the older model doesn’t support the subject-detection AF developed with Deep Learning technology that the XS20 now offers.

In the Single point AF mode there are up to 425 selectable AF points arranged in a 25×17 grid. Alternatively, the camera can be set to 117 points in a 13×9 grid, and the size of the points can also be varied.

In addition to Single point AF, there’s Zone AF which allows the AF points to be selected in 3×3, 5×5 or 7×7 groups, and Wide/Tracking AF.

The X-S20 can automatically detect animals, birds, cars, motorcycles, bicycles, airplanes, trains, insects and drones thanks to the X-Processor 5’s AI deep learning capabilities.

In addition the new AUTO Subject Detection function automatically detects and tracks a subject while keeping it in focus when taking stills and recording video.




Fujifilm X-S10

Perhaps unsurprisingly given its size, the Fujifilm X-S20 only has a single SD UHS-II memory card slot, rather than the X-T5’s dual card slots.

What’s more, on the XS20 the memory card slot is next to the battery in a shared compartment on the bottom of the camera, whereas on the X-T5 the memory cards are housed behind a lockable door on the side of the camera.

So the location of the memory card on the XS20 is less convenient and the single memory card slot is less flexible and offers less peace of mind than the dual slots on the XT5.

In a very welcome change, the Fujifilm X-S20 now uses the larger capacity NP-W235 battery found in the X-T5 , rather than the smaller capacity NP-W126S battery that the X-S10 used.

This offers a CIPA-rated battery life of up to 800 shots on a single charge in normal mode, versus a just 325 shots on the X-S10, which is a significant improvement.

Both cameras can also be powered and charged via a USB-C connection, which is useful if you’re out and about and have a compatible power-bank to plug the camera into.

You can now connect the X-S20 to a computer with a USB-Type C cable to use it as a webcam without having to install any software, unlike the X-S10 which has to use the Fujifilm X Webcam app.

Image Quality

All of the sample images in this review were taken using the 26.1 megapixel Raw + Fine JPEG setting, which gives an average image size of around 55Mb and 10Mb respectively.

Noise

There are 11 ISO settings available for the Fujifilm X-S20 for RAW and JPEG files. Here are some 100% crops which show the levels of noise for each ISO setting.

JPEG RAW

ISO 80 (100% Crop)

ISO 80 (100% Crop)

iso100.jpg iso100.jpg

ISO 160 (100% Crop)

ISO 160 (100% Crop)

iso100.jpg iso100.jpg

ISO 200 (100% Crop)

ISO 200 (100% Crop)

iso200.jpg iso200raw.jpg

ISO 400 (100% Crop)

ISO 400 (100% Crop)

iso400.jpg iso400raw.jpg

ISO 800 (100% Crop)

ISO 800 (100% Crop)

iso800.jpg iso800raw.jpg

ISO 1600 (100% Crop)

ISO 1600 (100% Crop)

iso1600.jpg iso1600raw.jpg

ISO 3200 (100% Crop)

ISO 3200 (100% Crop)

iso3200.jpg iso3200raw.jpg

ISO 6400 (100% Crop)

ISO 6400 (100% Crop)

iso6400.jpg iso6400raw.jpg

ISO 12800 (100% Crop)

ISO 12800 (100% Crop)

iso12800.jpg iso12800raw.jpg

ISO 25600 (100% Crop)

ISO 25600 (100% Crop)

iso25600.jpg iso25600.jpg

ISO 51200 (100% Crop)

ISO 51200 (100% Crop)

iso51200.jpg iso51200.jpg

File Quality

The Fujfilm X-S20 shoots in RAW and JPEG with two quality settings; Fine and Normal . Here are 100% crops of those three options with the files size shown in brackets.

Fine (13.7Mb) (100% Crop) Normal (8.37Mb) (100% Crop)
quality_fine.jpg quality_normal.jpg
RAW (55.7Mb) (100% Crop)

Night

Set the shutter speed dial to its S position (Shutter Speed Priority) and shutter speeds up to 15 minutes are available.

Combined with such a good control over noise, the X-S20 is an excellent night shooter.


Dynamic Range

A dynamic range (DR) boost is always on, with a choice between auto, 100%, 200% and 400%. We have taken identical images going through this range of settings and the visible difference of detail in the extreme shadow and highlights areas is actually rather subtle. As such, for the most part we kept DR in the auto setting.

Film Simulations

The Fujifilm X-S20 offers 19 different film simulation modes to help replicate the look of your favourite film stock from the past.

Filters

The Fujifilm X-S20 offers 13 different creative filter effects which can be previewed on the LCD screen and/or in the EVF before taking a photo.

Toy Camera


Miniature


Pop Color


High-Key


Low-Key


Dynamic Tone


Soft Focus


Partial Color (Red)


Partial Color (Orange)


Partial Color (Yellow)


Partial Color (Green)


Partial Color (Blue)


Partial Color (Purple)


Sample Images

This is a selection of sample images from the Fujifilm X-S20 camera, which were all taken using the 26.1 megapixel Fine JPEG setting. The thumbnails below link to the full-sized versions, which have not been altered in any way.

Sample RAW Images

The Fujifilm X-S20 enables users to capture RAW and JPEG format files. We’ve provided some Fujifilm RAW (RAF) samples for you to download (thumbnail images shown below are not 100% representative).

Sample Movies & Video

This is a sample 4K movie at the quality setting of 3840×2160 pixels at 60 frames per second.

This is a sample 4K movie at the quality setting of 3840×2160 pixels at 30 frames per second.

This is a sample slow-motion movie at the quality setting of 1920×1080 pixels at 240 frames per second.

This is a sample 6K movie at the quality setting of 6240×3510 pixels at 30 frames per second.

This is a sample 4K movie at the quality setting of 3840×2160 pixels at 60 frames per second.

This is a sample 4K movie at the quality setting of 3840×2160 pixels at 30 frames per second.

This is a sample 4K movie at the quality setting of 3840×2160 pixels at 30 frames per second.

This is a sample 4K movie at the quality setting of 3840×2160 pixels at 30 frames per second.

Product Images

Fujifilm X-S20
Fujifilm X-S20
Fujifilm X-S20
Fujifilm X-S20
Fujifilm X-S20
Fujifilm X-S20
Fujifilm X-S20
Fujifilm X-S20
Fujifilm X-S20
Fujifilm X-S20
Fujifilm X-S20
Fujifilm X-S20
Fujifilm X-S20
Fujifilm X-S20
Fujifilm X-S20
Fujifilm X-S20
Fujifilm X-S20
Fujifilm X-S20
Fujifilm X-S20
Fujifilm X-S20
Fujifilm X-S20
Fujifilm X-S20
Fujifilm X-S20

Conclusion

Despite looking almost identical, the new Fujifilm X-S20 APS-C camera improves on the first-generation X-S10 from 2020 in a number of significant ways.

Most notably, the newer model has a much longer battery life, better auto-focusing system, 6K video support, higher-resolution LCD screen, dedicated headphone jack, and more effective IBIS, all housed in a similarly sized body.

The XS20 remains an intriguingly different proposition to the X-T and X-H series cameras in terms of its size and design, yet one that offers a lot of the core features at a lower price-point.

The combination of the 26 megapixel sensor from its predecessor and the latest X-Processor 5 may prove to be the sweet-spot for people who don’t need the extra resolution offered by the X-T5 and X-H2’s 40 megapixel sensor.

You essentially get the more “sensible” 26 megapixels paired with the subject-detect auto-focus and 6K video recording that the newer processor provides.

Together with the almost unnoticeable integration of the larger capacity NP-W235 battery which more than doubles the battery life, that may be enough to seal the deal for the new X-S20 without even having to mention the dedicated Vlog mode and the equally new Product Priority and Background Defocus modes.

With the recent hikes in the cost of almost everything, though, the XS20 is priced at a whopping £$300 more than the original model was launched at just three years ago, which is not to be sniffed at in a cost of living crisis.

Ultimately, though, the X-S20 builds on the success of its innovative predecessor, continuing to offer most of the core features of the X-T5 in a smaller, lighter and simpler package at a still cheaper price point.

4.5 stars

Ratings (out of 5)
Design 4.5
Features 4.5
Ease-of-use 4.5
Image quality 5
Value for money 4

Main Rivals

Listed below are some of the rivals of the Fujifilm X-S20.

The Canon EOS M6 Mark II is a new mid-range mirrorless camera with a 32 megapixel APS-C sensor, 4K video recording, 14fps burst shooting, a tilting touchscreen and optional electronic viewfinder. Can it beat the likes of the Sony A6400 and Fujifilm X-T30 cameras? Find out now by reading our Canon EOS M6 Mark II review…


The new Canon EOS R8 full-frame mirrorless camera integrates the image quality and autofocusing from the more expensive EOS R6 Mark II with the smaller, lighter and simpler body of the cheaper EOS RP. Is the resulting camera a resounding success or a terrible mish-mash? Find out now by reading our in-depth Canon EOS R8 review…


The Fujifilm X-S10 mirrorless camera aims to bring the renowned X-series image quality and colour science to a wider audience by being smaller, easier to use and cheaper than the company’s flagship cameras. Does it strike the right balance between simplicity and accessibility? Find out now by reading our in-depth Fuji XS10 review…


The X-T30 II is the latest mid-range mirrorless camera from Fujifilm, boasting a 26 megapixel APS-C sensor, 4K/30p video recording, 30fps burst shooting and a stylish retro look and feel. Is the replacement for the two-year-old X-T30 worth considering? Find out now by reading our XT30 II review complete with full size sample photos…


The Fujifilm X-T5 is the successor to the very popular X-T4 which was released in 2020, principally adding a new 40 megapixel sensor, 160 megapixel Pixel Shift Multi-Shot mode, 6.2K video recording and better auto-focusing. Can the new XT5 improve on what was already an outstanding camera? Find out now by reading our in-depth Fujifilm X-T5 review…


Nikon have introduced their first APS-C, cropped-sensor mirrorless camera with the launch of the Z50, accompanied by two kit zoom lenses. Can the Z50 take on the likes of the well established Sony A6000-series and Canon EOS-M range, not to mention Fujifilm with its line-up of excellent APS-C bodies and lenses? Find out now by reading our in-depth Nikon Z50 review.


The A6600 is the new all-singing, all-dancing flagship camera in Sony’s extensive range of APS-C mirrorless cameras, but does it offer enough to out-gun both its main rivals and its cheaper siblings? Find out now by reading our in-depth Sony A6600 review, complete with full-size sample images and videos.

Review Roundup

Reviews of the Fujifilm X-S20 from around the web.

Introduced with a new ultra-wide-angle XF 8mm f/3.5 lens, the 26.1MP Fujifilm X-S20 offers high-resolution video recording, at up to 6.2K at 30p, 4K at 60p, and FullHD at 240fps. Designed to be suitable for all types of users, whether that’s content creators, videographers, or stills shooters.

Read the full review »

The FUJIFILM X-S20 is here, and in my opinion, it is the best middle-class camera out there. In fact, it is like having 5 cameras in one body: a photo camera, webcam, “normal video camera”, vlogging camera, and what I call a “creative camera”.

Read the full review »

Specifications

Model name FUJIFILM X-S20
Lens Mount FUJIFILM X mount
Image sensor 23.5mm x 15.6mm (APS-C) X-Trans CMOS 4 with primary color filter
Number of effective pixels 26.1 millions pixels
Sensor Cleaning System Ultra Sonic Vibration
Image Processing Engine X-Processor 5
Storage media SD Card (-2GB) / SDHC Card (-32GB) / SDXC Card (-2TB) / UHS-I / UHS-II / Video Speed Class V90
*Please see the Fujifilm website ( to check memory card compatibility.
File format of still image DCF Compliant with Design rule for Camera File system (DCF2.0)
JPEG Exif Ver.2.32*1
HEIF 4:2:2 10bit
RAW 14bit RAW (RAF original format)
TIFF 8bit / 16bit RGB (In-camera Raw Conversion Only)
Number of recorded pixels [L] 〈3:2〉 6240 x 4160 〈16:9〉 6240 x 3512 〈1:1〉 4160 x 4160
[M] 〈3:2〉 4416 x 2944 〈16:9〉 4416 x 2488 〈1:1〉 2944 x 2944
[S] 〈3:2〉 3120 x 2080 〈16:9〉 3120 x 1760 〈1:1〉 2080 x 2080
Panorama [L] 〈vertical〉 9600 x 2160 〈Horizontal〉 9600 x 1440
[M] 〈vertical〉 6400 x 2160 〈Horizontal〉 6400 x 1440
Sensitivity Still Image Standard Output: AUTO1 / AUTO2 / AUTO3 / ISO160~12800 (1/3 step)
Extended Output: ISO80 / ISO100 / ISO125 / ISO25600 / ISO51200
Movie Standard Output: AUTO / ISO125~12800 (1/3 step)
Extended Output: ISO25600
Exposure control TTL 256-zone metering / Multi / Spot / Average / Center Weighted
Exposure mode P (Program AE) / A (Aperture Priority AE) / S (Shutter Speed Priority AE) / M (Manual Exposure)
Exposure compensation Still -5.0EV~+5.0EV 1/3EV step
Movie -2.0EV~+2.0EV 1/3EV step
Image stabilizer Mechanism Image sensor shift mechanism with 5-axis compensation
Compensation Effect 7.0 stops
*based on CIPA standard
*Pitch/yaw shake only
*With XF35mmF1.4 R lens mounted
Digital Image Stabilization Yes (movie mode only)
IS MODE BOOST Yes (movie mode only)
Shutter type Focal Plane Shutter
Shutter speed Mechanical shutter P mode: 30sec. to 1/4000sec. A mode: 30sec. to 1/4000sec. S/M mode: 15min. to 1/4000sec. Bulb: up to 60min.
Electronic shutter P mode: 30sec. to 1/32000sec. A mode: 30sec. to 1/32000sec. S/M mode: 15min. to 1/32000sec. Bulb: 1sec. Fixed
Mechanical + Electronic shutter P mode: 30sec. to 1/32000sec. A mode: 30sec. to 1/32000sec. S/M mode: 15min. to 1/32000sec. Bulb: up to 60min.
*Mechanical shutter works until 1/4000sec.
Movie 6.2K: 1/4000sec. to 1/24 sec. DCI4K/4K: 1/4000sec. to 1/24 sec. FHD: 1/4000sec. to 1/24 sec.
*Cannot choose slower shutter speed than framerate for some settings.
Synchronized shutter speed for flash Mechanical shutter: 1/180sec. or slower
Continuous shooting CH Electronic shutter Approx. 30fps (1.25x Crop) (No. of recordable frames: JPEG 407 frames, Compressed RAW 88 frames, Lossless compressed RAW 62 frames, Uncompressed RAW 28 frames, Compressed RAW + JPEG 41 frames, Lossless compressed RAW + JPEG 36 frames, Uncompressed RAW + JPEG 28 frames)
CH Electronic shutter Approx. 20fps (1.25x Crop) (No. of recordable frames: JPEG 1000+ frames, Compressed RAW 104 frames, Lossless compressed RAW 72 frames, Uncompressed RAW 30 frames, Compressed RAW + JPEG 66 frames, Lossless compressed RAW + JPEG 53 frames, Uncompressed RAW + JPEG 30 frames)
CH Electronic shutter Approx. 10fps (1.25x Crop) (No. of recordable frames: JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 215 frames, Uncompressed RAW 40 frames, Compressed RAW + JPEG 163 frames, Lossless compressed RAW + JPEG 102 frames, Uncompressed RAW + JPEG 40 frames)
CH Electronic shutter Approx. 20fps (No. of recordable frames: JPEG 256 frames, Compressed RAW 79 frames, Lossless compressed RAW 44 frames, Uncompressed RAW 28 frames, Compressed RAW+JPEG 68 frames, Lossless compressed RAW+JPEG 33 frames, Uncompressed RAW+JPEG 28 frames)
CH Electronic shutter Approx. 10fps (No. of recordable frames: JPEG 1000+ frames, Compressed RAW 341 frames, Lossless compressed RAW 82 frames, Uncompressed RAW 32 frames, Compressed RAW+JPEG 89 frames, Lossless compressed RAW+JPEG 51 frames, Uncompressed RAW+JPEG 32 frames)
CH Electronic shutter Approx. 8fps (No. of recordable frames: JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 90 frames, Uncompressed RAW 35 frames, Compressed RAW+JPEG 94 frames, Lossless compressed RAW+JPEG 57 frames, Uncompressed RAW+JPEG 33 frames)
CH Mechanical shutter Approx. 8fps (No. of recordable frames: JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 90 frames, Uncompressed RAW 35 frames, Compressed RAW+JPEG 94 frames, Lossless compressed RAW+JPEG 57 frames, Uncompressed RAW+JPEG 33 frames)
CL Approx. 5.0fps (No. of recordable frames: JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 49 frames)
CL Approx. 4.0fps (No. of recordable frames: JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 67 frames)
CL Approx. 3.0fps (No. of recordable frames: JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 1000+ frames)
Pre-shot Electronic shutter, 1.25 x Crop Approx. 30fps (No. of recordable frames: While half press 30 frames, After full press 75 frames, Total 105 frames)
Pre-shot Electronic shutter, 1.25 x Crop Approx. 20fps (No. of recordable frames: While half press 20 frames, After full press 576 frames, Total 596 frames)
Pre-shot Electronic shutter, 1.25 x Crop Approx. 10fps (No. of recordable frames: While half press 10 frames, After full press 1000+ frames, Total 1000+ frames)
Pre-shot Electronic shutter Approx. 20fps (No. of recordable frames: While half press 20 frames, After full press 998 frames, Total 1018 frames)
Pre-shot Electronic shutter Approx. 10fps (No. of recordable frames: While half press 10 frames, After full press 1000+ frames, Total 1000+ frames)
Pre-shot Electronic shutter Approx. 8fps (No. of recordable frames: While half press 8 frames, After full press 1000+ frames, Total 1000+ frames)
*Recordable frames depends on recording media
*Speed of continuous shooting depends on shooting environment and shooting frames
Drive Mode AE Bracketing 2 frames / 3 frames / 5 frames / 7 frames / 9 frames
*by 1/3EV step, up to ±3EV steps
Filmsimulation bracketing Any 3 types of film simulation selectable
Dynamic Range Bracketing 100% / 200% / 400%
ISO sensitivity Bracketing ±1/3EV / ±2/3EV / ±1EV
White Balance Bracketing ±1 / ±2 / ±3
Focus Bracketing AUTO / MANUAL
Multiple Exposure Yes (Max. 9 frames) / Additive / Average / Bright / Dark
HDR Mode AUTO / 200% / 400% / 800% / 800% +
Advanced filter Toy camera / Miniature / Pop color / High-key / Low-key / Dynamic tone / Soft focus / Partial color (Red / Orange / Yellow / Green / Blue / Purple)
Focus Mode Single AF / Continuous AF / MF
Type Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF)
Low-light Performance Contrast: -4.0EV XF50mmF1.0 attached
Phase Detection: -7.0EV XF50mmF1.0 attached
AF frame selection Single point AF: 13×9 / 25×17 (Changeable size of AF frame)
Zone AF: 3×3 / 5×5 / 7×7 from 117 areas on 13×9 grid
Wide/Tracking AF: Yes (AF-S: Wide / AF-C: Tracking)
All: Yes
Face/eye detection Yes
Subject detection Yes (Animal/Bird/Automobile/Motorcycle&Bike/Airplane/Train)
Flash Built-in flash Manual pop-up flash (Super Intelligent Flash)
Guide Number: approx. 7 (ISO200・m) / approx. 5 (ISO100・m)
Sync. Mode: 1st Curtain / 2nd Curtain
Flash Mode: TTL (TTL AUTO / STANDARD / SLOW SYNC. ) / MANUAL / COMMANDER / OFF
Shoe mount flash Sync. Mode: 1st Curtain / 2nd Curtain / AUTO FP (HSS)
Flash Mode: TTL (TTL AUTO / STANDARD / SLOW SYNC. ) / MANUAL / MULTI *When EF-X500 is set / OFF
Hot shoe Yes (Dedicated TTL Flash compatible)
Viewfinder EVF: 0.39 inch OLED Color Viewfinder, Approx. 2.36 million dots
Coverage of Viewing Area vs. Capturing Area: Approx. 100%
Eyepoint: Approx. 17.5mm (from the Rear End of the Camera’s Eyepiece)
Diopter Adjustment: -4~+2m-1
Magnification: 0.62x with 50mm Lens (35mm Equivalent) at infinity and Diopter set to -1.0m-1
Diagonal Angle of View: approx. 31° (Horizontal angle of view: approx. 26° )
Built-In Eye Sensor
LCD monitor 3.0 inch vari-angle Touch Screen Color LCD Monitor
Aspect Ratio: 3:2
Dots: Approx. 1.84 million dots
Touch Screen Mode Shooting Mode Shooting, AF, Focus Area, OFF, Double Tap Setting (ON/OFF), Touch Function Setting (ON/OFF), Touch Zoom (ON/OFF), EVF Touch Screen Area Setting
Playback Mode Swipe, Pinch-in / Pinch-out, Double-tap, Drag
Movie recording File format MOV:
HEVC/H.265, Linear PCM (Stereo sound 24bit / 48KHz sampling)
MPEG-4 AVC/H.264, Linear PCM (Stereo sound 24bit / 48KHz sampling)
MP4:
MPEG-4 AVC/H.264, AAC
Movie compression All Intra / Long GOP
File size
Frame rate
Bitrate
[6.2K(3:2)] 6240 x 4160 29.97p/25p/24p/23.98p 360Mbps/200Mbps/100Mbps/50Mbps
[DCI4K(17:9)] 4096 x 2160 59.94p/50p/29.97p/25p/24p/23.98p 360Mbps/200Mbps/100Mbps/50Mbps
[4K(16:9)] 3840 x 2160 59.94p/50p/29.97p/25p/24p/23.98p 360Mbps/200Mbps/100Mbps/50Mbps
[Full HD(17:9)] 2048 x 1080 59.94p/50p/29.97p/25p/24p/23.98p 360Mbps/200Mbps/100Mbps/50Mbps
[Full HD(16:9)] 1920 x 1080 59.94p/50p/29.97p/25p/24p/23.98p 360Mbps/200Mbps/100Mbps/50Mbps
[Full HD LP(17:9)] 2048 x 1080 (1.29x Crop) 59.94p/50p 360Mbps/200Mbps/100Mbps/50Mbps
[Full HDLP(16:9)] 1920 x 1080 (1.29x Crop) 59.94p/50p 360Mbps/200Mbps/100Mbps/50Mbps
[Full HD(17:9) High speed rec.] 2048 x 1080 240p/200p/120p/100p 360Mbps(recording)/200Mbps(recording)
[Full HD(16:9) High speed rec.] 1920 x 1080 240p/200p/120p/100p 360Mbps(recording)/200Mbps(recording)
*For recording movies, use a SD memory card with UHS Speed Class 3 or higher.
*For recording movies in 360Mbps, use a SD memory card with Video Speed Class 60 or higher.
*Selectable bitrate will be changed depends on the setting.
*Recording time can become short depending on the temperature and/or shooting conditions
Film simulation mode 19 modes (PROVIA/Standard, Velvia/Vivid, ASTIA/Soft, Classic Chrome, PRO Neg.Hi, PRO Neg.Std, Classic Neg., Nostalgic Neg., ETERNA/Cinema, ETERNA BLEACH BYPASS, ACROS, ACROS + Ye Filter, ACROS + R Filter, ACROS + G Filter, Black & White, Black & White + Ye Filter, Black & White + R Filter, Black & White + G Filter, Sepia)
Monochromatic Color Yes
Grain Effect Roughness STRONG, WEAK, OFF
Size LARGE, SMALL
Color Chrome Effect STRONG, WEAK, OFF
Color chrome Blue STRONG, WEAK, OFF
Dynamic range setting Still AUTO / 100% / 200% / 400%
ISO restriction: DR100%: No limit、DR200%: ISO320 or more、DR400%: ISO640 or more
Movie 100% / 200% / 400%
ISO restriction: DR100%: No limit、DR200%: ISO320 or more、DR400%: ISO640 or more
White balance Auto White Priority / Auto / Ambience Priority
Custom Custom1 – 3
Color temperature selection 2500K~10000K
Preset Daylight / Shade / Fluorescent Light-1 / Fluorescent Light-2 / Fluorescent Light-3 / Incandescent Light / Underwater
Clarity setting ±5 steps
Self-timer Still 10sec. / 2sec.
Movie 10sec. / 5sec. / 3sec.
Interval timer shooting Yes (Setting : Interval, Number of shots, Starting time, Interval timer shooting exposure smoothing, Interval priority mode)
Wireless transmitter Standard IEEE802.11a/b/g/n/ac (standard wireless protocol)
Encryption WPA/WPA2 mixed mode, WPA3
Access mode Infrastructure
Bluetooth® Standartd Bluetooth Ver. 4.2 (Bluetooth low energy)
Operating frequency (Center frequency) 2402~2480MHz
Terminal Digital interface USB Type-C (USB3.2 Gen2x1)
HDMI output HDMI Micro connector (Type D)
Others ø3.5mm, stereo mini connector (Microphone)
ø3.5mm, stereo mini connector (Headphone)
Hot shoe
Power supply NP-W235 Li-ion battery (included)
Battery life for still images*2 Economy Mode: Approx. 800 frames
Normal Mode: Approx. 750 frames
*When XF35mmF1.4 R is set
Actual battery life of movie capture*2 6.2K: Approx. 85min. (29.97p)
4K: Approx. 80min. (59.94p)
Full HD: Approx. 95min. (59.94p), Approx. 95min. (120P)
*Face detection is set to OFF
Continuance battery life of movie capture*2 6.2K: Approx. 120min. (29.97p)
4K: Approx. 110min. (59.94p)
Full HD: Approx. 150min. (59.94p)
*Face detection is set to OFF
Dimensions Width: 127.7mm
Height: 85.1mm
Depth: 65.4mm
(Minimum Depth: 32.9mm)
Weight including battery and memory card: Approx. 491g
excluding battery and memory card: Approx. 410g
Operation Environment Operating Temperature 0℃~+40℃
Operating Humidity 10% – 80% (no condensation)
Accessories included Li-ion battery NP-W235
AC power adapter AC-5VJ
Plug adapter
USB cable
Shoulder strap
Body cap
Cooling fan connector cover
  • *1 Exif 2.32 is a digital camera file format that contains a variety of shooting information for optimal printing
  • *2 Approximate number of frames or movie recording time that can be taken with a fully-charged based on CIPA Standard.

Movie Specification

Media Rec (SD memory card)

Resolution/Aspect Size Frame rate File format/Compression Bit rate*1 Bit depth HDMI outupt
Resolution(Frame rate)/Sampling/Bit depth
Crop Magnification
DIS ON DIS OFF
6.2K 3:2 6240 x 4160 29.97p
25.00p
24.00p
23.98p
H.265 All-Intra 4:2:2 MOV
H.265 All-Intra 4:2:0 MOV
360Mbps 10bit FHD 4:2:2 10bit (H.265 All-Intra 4:2:2 MOV selected)*2*3
4K 4:2:2 10bit (H.265 All-Intra 4:2:0 MOV selected)*2*3
Not
possible
1.0x
H.265 Long GOP 4:2:2 MOV
H.265 Long GOP 4:2:0 MOV
360Mbps
200Mbps
100Mbps
50Mbps
FHD 4:2:2 10bit (H.265 Long GOP 4:2:2 MOV selected)*2*3
4K 4:2:2 10bit (H.265 Long GOP 4:2:0 MOV selected)*2*3
Not
possible
1.0x
DCI4K 17:9
4K 16:9
4096 x 2160
3840 x 2160
59.94p
50.00p
29.97p
25.00p
24.00p
23.98p
H.265 All-Intra 4:2:2 MOV
H.265 All-Intra 4:2:0 MOV
360Mbps 10bit DCI4K/4K 4:2:2 10bit 1.1x 1.18x
H.265 Long GOP 4:2:2 MOV
H.265 Long GOP 4:2:0 MOV
360Mbps
200Mbps
100Mbps
50Mbps
1.1x 1.18x
H.264 All-Intra 4:2:0 MOV 360Mbps 8bit DCI4K/4K 4:2:2 8bit 1.1x 1.18x
H.264 Long GOP 4:2:0 MOV
H.264 Long GOP 4:2:0 MP4
360Mbps
200Mbps
100Mbps
50Mbps
1.1x 59.94p/50.00p:1.18x
29.97p/25.00p/24.00p/23.98p:1.0x
FHD 17:9
FHD 16:9
2048 x 1080
1920 x 1080
59.94p
50.00p
29.97p
25.00p
24.00p
23.98p
H.265 All-Intra 4:2:2 MOV
H.265 All-Intra 4:2:0 MOV
360Mbps 10bit FHD 4:2:2 10bit*3 1.1x 1.0x
H.265 Long GOP 4:2:2 MOV
H.265 Long GOP 4:2:0 MOV
360Mbps
200Mbps
100Mbps
50Mbps
1.1x 1.0x
H.264 All-Intra 4:2:0 MOV 360Mbps 8bit FHD 4:2:2 8bit*3 1.1x 1.0x
H.264 Long GOP 4:2:0 MOV
H.264 Long GOP 4:2:0 MP4
360Mbps
200Mbps
100Mbps
50Mbps
1.1x 1.0x
Long play
FHD 17:9
FHD 16:9
2048 x 1080
1920 x 1080
59.94p
50.00p
H.265 All-Intra 4:2:2 MOV
H.265 All-Intra 4:2:0 MOV
360Mbps 10bit FHD 4:2:2 10bit Not
possible
1.29x
H.265 Long GOP 4:2:2 MOV
H.265 Long GOP 4:2:0 MOV
360Mbps
200Mbps
100Mbps
50Mbps
Not
possible
H.264 All-Intra 4:2:0 MOV 360Mbps 8bit FHD 4:2:2 8bit Not
possible
H.264 Long GOP 4:2:0 MOV
H.264 Long GOP 4:2:0 MP4
360Mbps
200Mbps
100Mbps
50Mbps
Not
possible
High speed
FHD 17:9
FHD 16:9
2048 x 1080
1920 x 1080
240fps(4×/8×/10×)
200fps(4×/8×)
120p (2x/4x/5x)
100p (2x/4x)
H.265 All-Intra 4:2:2 MOV
H.265 All-Intra 4:2:0 MOV
360Mbps (when recording) 10bit FHD(59.94p) 4:2:2 10bit*4 Not
possible
1.29x
H.265 Long GOP 4:2:2 MOV
H.265 Long GOP 4:2:0 MOV
360Mbps (when recording)
200Mbps (when recording)
H.264 All-Intra 4:2:0 MOV 360Mbps (when recording) 8bit FHD(59.94p) 4:2:2 8bit*4
H.264 Long GOP 4:2:0 MOV
H.264 Long GOP 4:2:0 MP4
360Mbps (when recording)
200Mbps (when recording)

HDMI Output

Resolution/Aspect Size Frame rate HDMI outupt
Resolution/Sampling/Bit depth
Crop Magnification
DIS ON DIS OFF
6.2K 3:2 6240 x 4160 29.97p
25.00p
24.00p
23.98p
FHD 4:2:2 10bit*2*3 Not
possible
1.0x
DCI4K 17:9
4K 16:9
4096 x 2160
3840 x 2160
59.94p
50.00p
29.97p
25.00p
24.00p
23.98p
DCI4K/4K 4:2:2 10bit 1.1x 1.0x
FHD 17:9
FHD 16:9
2048 x 1080
1920 x 1080
59.94p
50.00p
29.97p
25.00p
24.00p
23.98p
FHD 4:2:2 10bit 1.1x 1.0x

HDMI Output (High speed REC HDMI ONLY)

Resolution/Aspect Size Frame rate HDMI outupt
Resolution(Frame rate)/Sampling/Bit depth
Crop Magnification
DIS ON DIS OFF
FHD 16:9 1920 x 1080 120p
100p
FHD(120p/100p) 4:2:2 10bit Not
possible
1.29x

HDMI RAW Output

Resolution/Aspect Size Frame rate Crop Magnification
DIS ON DIS OFF
6.2K 3:2 6240 x 4160 29.97p
25.00p
24.00p
23.98p
Not
possible
1.0x
5.2K 16:9 5232 x 2944 59.94p
50.00p
29.97p
25.00p
24.00p
23.98p
Not
possible
1.19x
  • *1 Bit rate will be changed depend on the subject
  • *2 The resolution from HDMI output is different from selected setting
  • *3 When the aspect ratio is not 16:9, the image is output in 16:9 with a black band.
  • *4 The frame rate from HDMI output is different from selected setting

Your Comments



Credit : Source Post

SS Author
We will be happy to hear your thoughts

Leave a reply

Siliconsavy.com
Logo
Shopping cart
